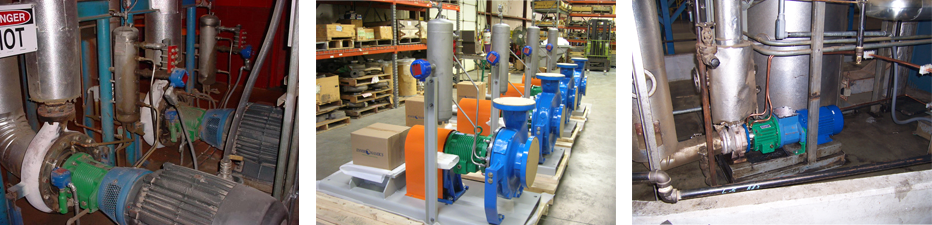

Complete Pump Packages

Proven the most reliable Hot Oil Pump since 1995.

  • Complete one-stop total package responsibility.
  • Pump, sealing system, motor, base, monitoring, etc.
  • Three Year Warranty; includes seal.
  • Manufactured in USA.
  • Parts & service readily available.

Advantages

  • Eliminate fire risk associated with some models.
  • Eliminate potential for hot oil spray & ignition.
  • Eliminate personnel safety hazard.
  • Contain & collect any seal leakage.
  • Does not rely on thermal oil for bearing & seal lube.
  • Not susceptible to thermal oil cooking & grit.
  • Self contained oil mist lube bearing frame.
  • Shaft fully supported by antifriction bearings.
  • No sleeve bearings to cook & wear.

Sizes

  • Sizes from 1×1.5×6 through 8x10x17.
  • Power to 300 hp.
  • Flow rates to over 4000 gpm.
  • Head to 700 ft tdh at 3600 rpm.
  • Operating temperature to 650oF.

Options

  • Carbon Steel and Stainless Steel metallurgy.
  • Centerline mount pump volutes to maintain pump alignment & minimize pipe strain at high temp.
  • Standard spacer coupling arrangements or C-Frame motor adapters to eliminate coupling alignment work.
  • Upgrade of existing pumps.
